بيت > المنتجات > وأدت الضوء بكسل > IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED

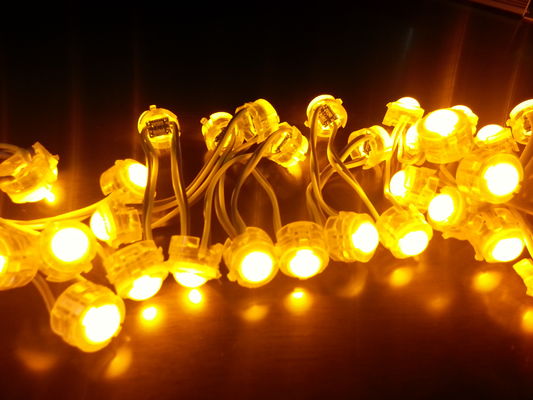

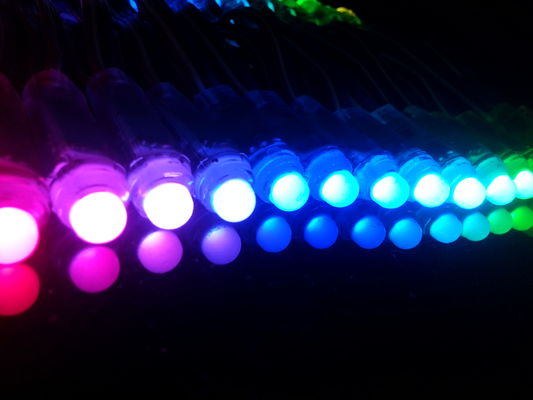

IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED

تفاصيل المنتج

Place of Origin: Guangdong,China

اسم العلامة التجارية: Miracle Bean

إصدار الشهادات: CE ROHS

Model Number: XH-G1202

شروط الدفع والشحن

Minimum Order Quantity: 10PCS

الأسعار: negotiate

Delivery Time: 3-5 working days

Payment Terms: T/T In advance,Western Union,Paypal,LC

Supply Ability: 500,000 Per month

احصل على افضل سعر
تسليط الضوء:

أضواء LED بكسل,

,

rgb pixel led

1Material:
PVC+Silicone
2Working Voltage:
DC5V
3Protection Class:
IP67
4Color:
RGB Full Color
5Rate Power:
0.3W
6LED Type:
1pcs 8mm Staw Hat
Material:
PVC+Silicone
Working Voltage:
DC5V
Protection Class:
IP67
Color:
RGB Full Color
Rate Power:
0.3W
LED Type:
1pcs 8mm Staw Hat
IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED

IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED





RGB LED Pixel light, LED Channel letter,programmable led sign,ourdoor using IP67



Products Name RGB LED Pixel/Pixel LED/LPD 1903 LED Pixel Light
Model NO. XH-G1202
Power Consumption  0.3W
Work Voltage DC5V
Work Current 60mA
Beam Angle 120°-140°
LED Encapsulation Straw Hat LED
LED Quantity 1pcs
LED Type Low power LED
Color  Full Color
FPC Color White
Dimension

Diameter12mm

Waterproof Grade IP67
Work Temperature -30-60deg
Light Decay Less Than 1% After 1,000H
Life-span 50,000H
Certificate CE&ROHS
Every Bag 200pcs
Warranty  3 years



IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED 0



Operation Instructions:


50pcs of each string, 3A/string. User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 2.5mm2.
Keep it in a well-ventilated environment, which good for heat dissipation.
The Green wire is data, Red wire connect with positive pole on the power supply,  yellow wire connect with negative pole and controller’s GND port, green wire is connect to controller DAT port. Do not reversal!



Features:


The led lamp diameter is 12mm, punching 12mm hole.
It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 5-8cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.













IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED 1



Our Advantage:





Quality Control:



All products will be tested and keep lighting up for 24 hours to test its quality reliability twice, and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
Order infomation


MOQ: 100pcs
Trade term: EXW / FOB Shenzhen/CIF
Delivery time: 3-5 working days for sample order, 7-10 working days for mass order after the payment.
Warranty3years.


Warranty term:


1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.



IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED 2
