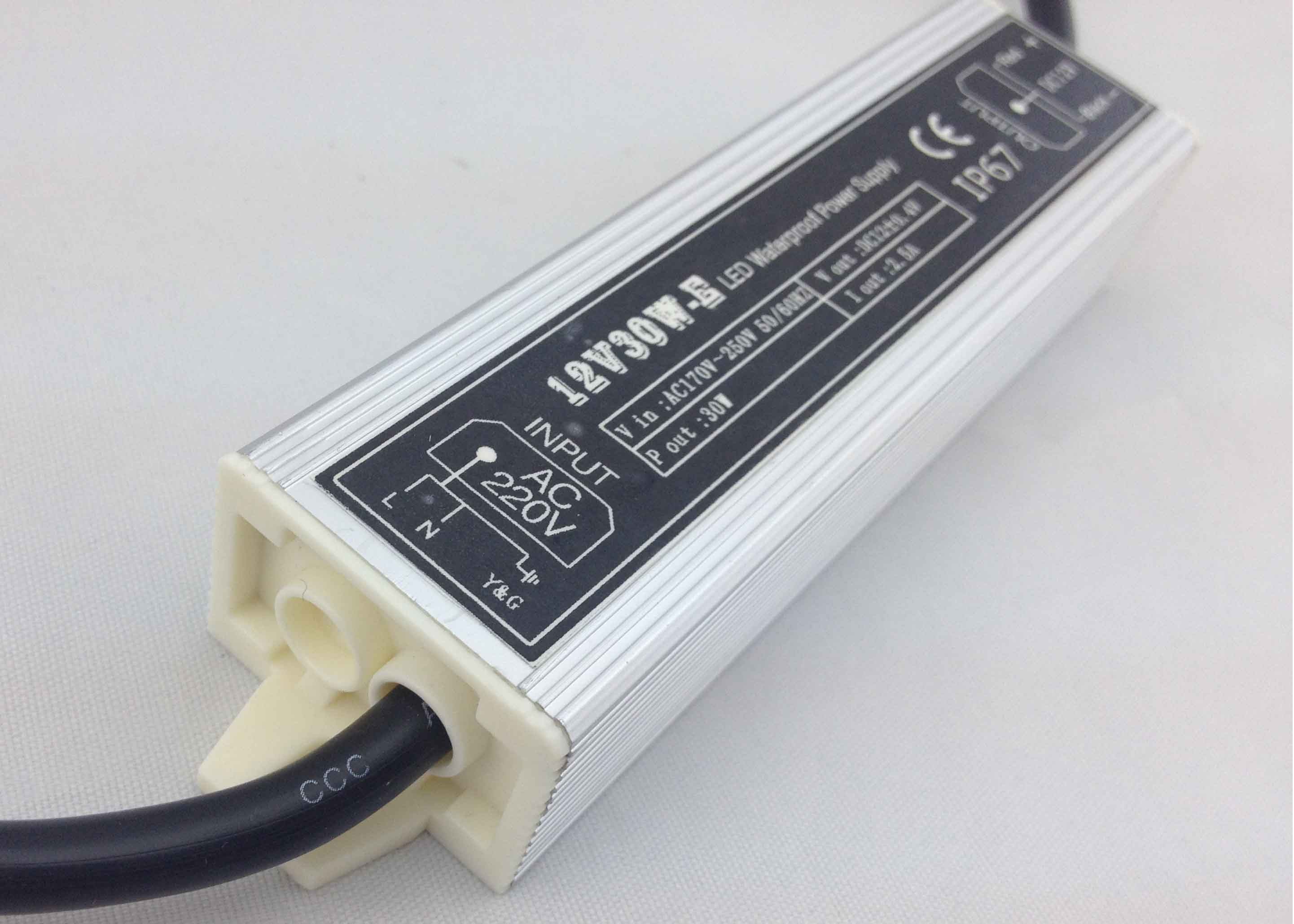

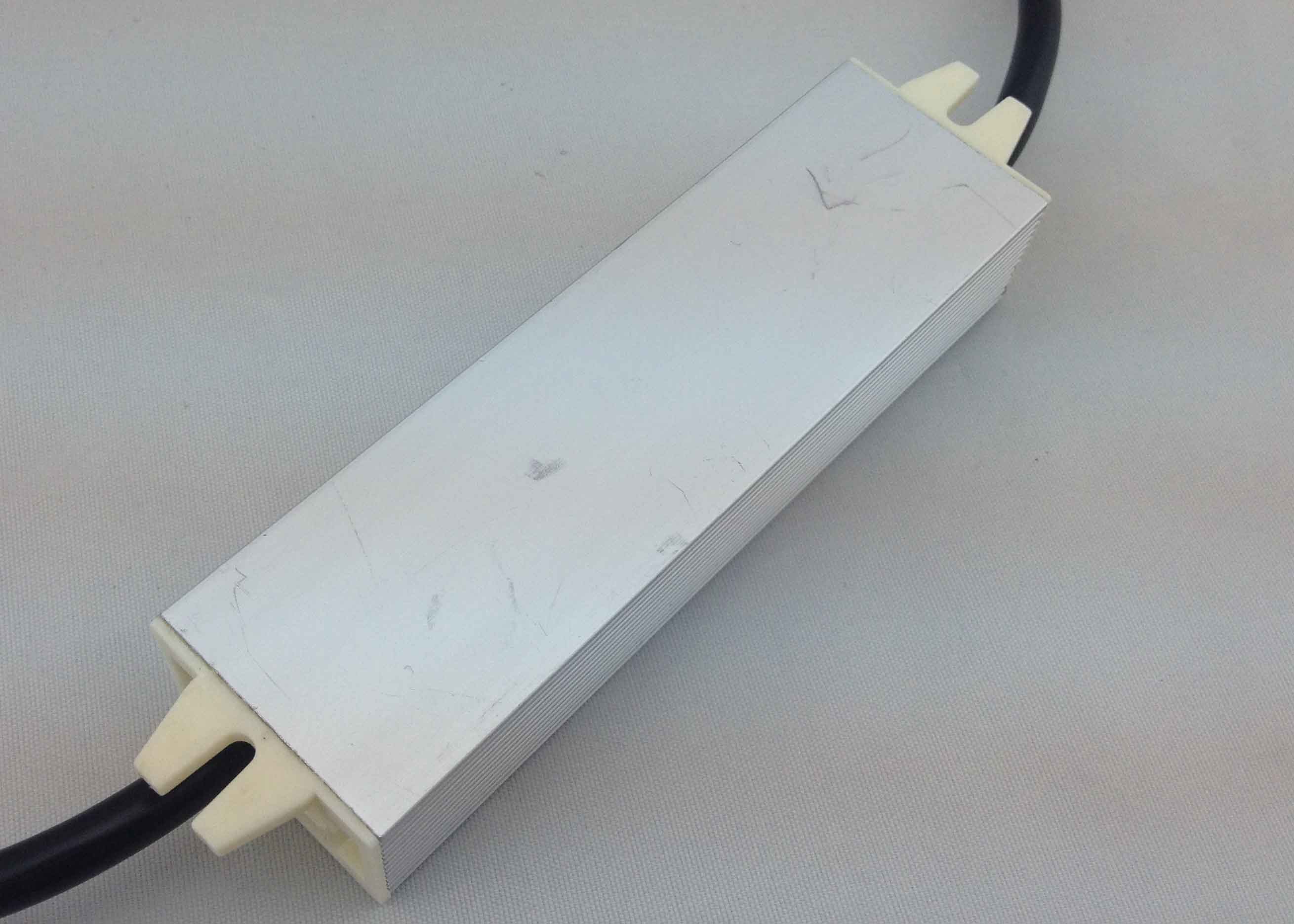

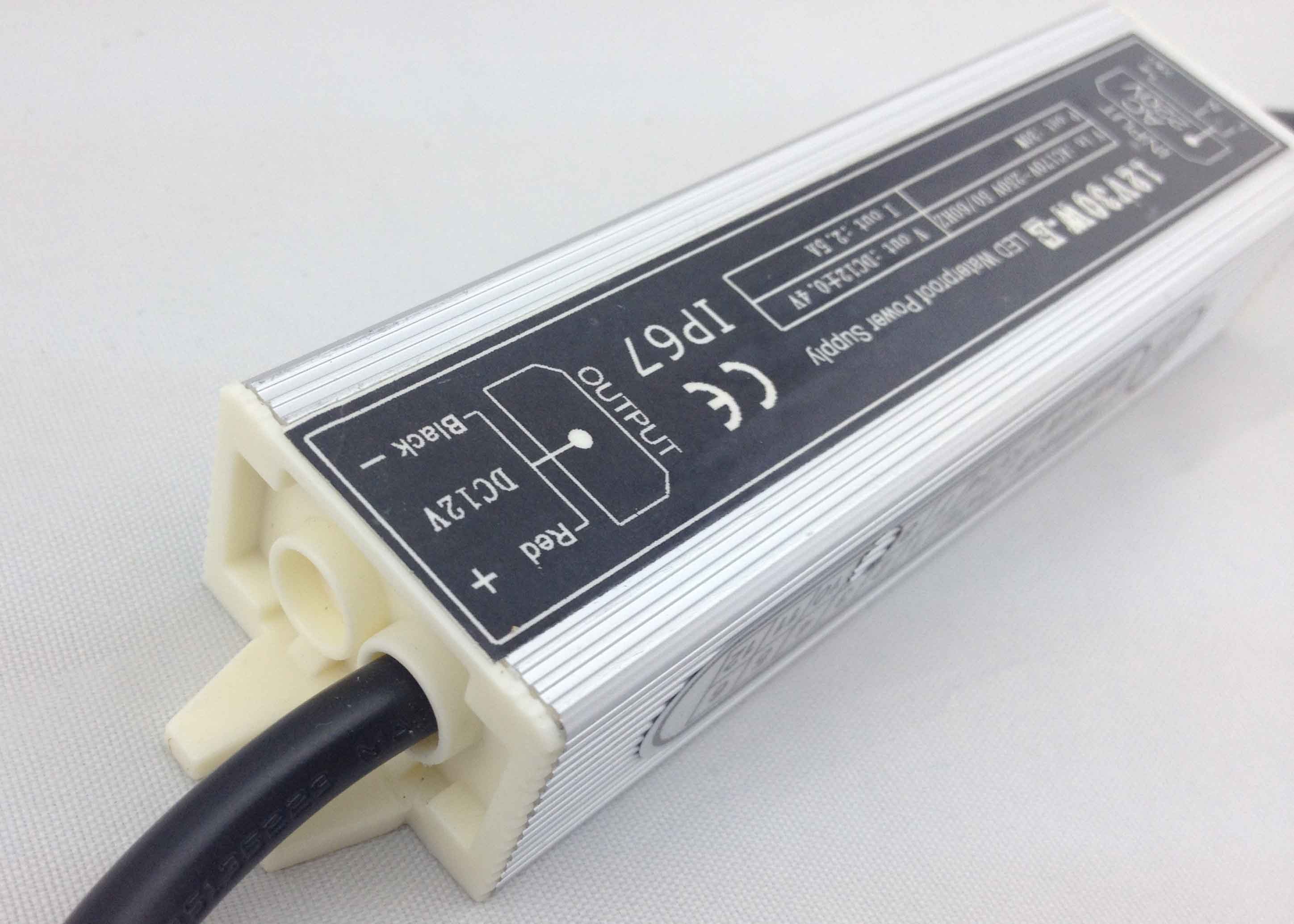

Short Circuit Protection LED Waterproof Driver , 12V 2.5A Switching Power Supply

Short Circuit Protection LED Waterproof Driver , 12V 2.5A Switching Power Supply

Quick Detail:

1. Waterproof IP67 CE ROHS

2. Rate Power: 30W

3. Input Voltage: AC90-130V/170-250V 50-60HZ

4. Short Circuit Protection,

when positive and negotive connect to each other,the power supply will switch off automaticaly,please check the system,and correcting the wiring,then switch  on the power again

5.Overload  protections,

please pay attection the total power of the system which you connect to the power supply,better loading the power supply with 90% of its rate power,Less loading will keep the power supply work for a longer time.

5. 2 YEAR’ S Warranty

6. Customised Service

Description:

High quality,with competitve price,more than 7 years' exprience,speciallized in waterproof led drivers, more than 20 foreign customers which have cooperated with our company for more than 3 years.Small MOQ,helping you to cooperate with our company step by step.

100% full load age testing IP67 CE ROHS

Protections:

1. Short Circuit: protection mode(revocers automatically after fault condition is removed.) So,if your power supply not work,please wait for 30 seconds,then start it again.Maybe its self-protection worked.

2. Overload Protection

3. Overtemperature:Protection model(shut down output votlage,work again after re-started.

Environment:

Working Temperature:-30-50 Centigrades(refer to output load derating curve)

Working Humidity: 20-99% RH non-condensing(waterproof)

Safety & EMC

Safety standards:CE mark(LVD),IP67

Withstand voltage:Input--Output,1.5KVAC Input--GND:1.5KVAC

EMC test standards:EN55015:2006;EN61547:1995+A1:2000;

EN61000-3-2:2006;EN61000-3-3:1995+A1:2000;

EN61347-1:2001;EN61347-2-13:2006

Our main models:

Constant Voltage(Iron Shell):

DC5V/12V/24V,10W,15W,20W,30W,40W,60W,80W,100W,120W,150W and 200W

Constant Current:

30V330mA,36V330mA,60V330mA,80V330mA,110V330mA,45V580mA,36V700mA.......

Waterproof Plastic Shell:

DC12V/24V 10W,20W,30W,40W.......

OEM and ODM Services are available !! MOQ: 1000PCS

Applications:

1. Power For led strips,led modules,led pixel lights,

2. Power For outdoor lamps,led street lamps,led downlight,led flood light and so on

3. Power For CCTV,

Competitive advantages:

1. We have more than 7 years’ experience in producing led power supply,
2. We have more than 20 foreign customers Who have kept purchasing from our company more than 3 years.
3. Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
4. Small MOQ, Short delivery time,2 years’ warranty.
