تفاصيل المنتج
مكان المنشأ: قوانغدونغ، الصين
اسم العلامة التجارية: Miracle Bean
إصدار الشهادات: CE ROHS
رقم الموديل: XH-800W-24V
شروط الدفع والشحن
الحد الأدنى لكمية: 50 قطعة
الأسعار: negotiate
تفاصيل التغليف: كرتون أو خشبي
وقت التسليم: 5-15 أيام
شروط الدفع: / تي تي، ويسترن يونيون
القدرة على العرض: 50000 قطعة شهريا
1تصنيع المعدات الأصلية: |
متاحة لتصميمات حزمة العملاء |
2يكتب: |
قوة وضع الجهد الثابت |
3فئة: |
IP67 مقاوم للماء LED التيار الكهربائي تيار مستمر 12 فولت |
4مادة الصدفة: |
الألومنيوم |
5تطبيق: |
شاشة LED ، سكني |
6الحد الأقصى الحالي: |
33A العاصمة |
7جهد الخرج: |
24V DC |
8معدل IP: |
IP67 |
9جهد الإدخال: |
180-264 فولت تيار متردد |
10خدمة: |
OEM و ODM |
تصنيع المعدات الأصلية: |
متاحة لتصميمات حزمة العملاء |
يكتب: |
قوة وضع الجهد الثابت |
فئة: |
IP67 مقاوم للماء LED التيار الكهربائي تيار مستمر 12 فولت |
مادة الصدفة: |
الألومنيوم |
تطبيق: |
شاشة LED ، سكني |
الحد الأقصى الحالي: |
33A العاصمة |
جهد الخرج: |
24V DC |
معدل IP: |
IP67 |
جهد الإدخال: |
180-264 فولت تيار متردد |
خدمة: |
OEM و ODM |

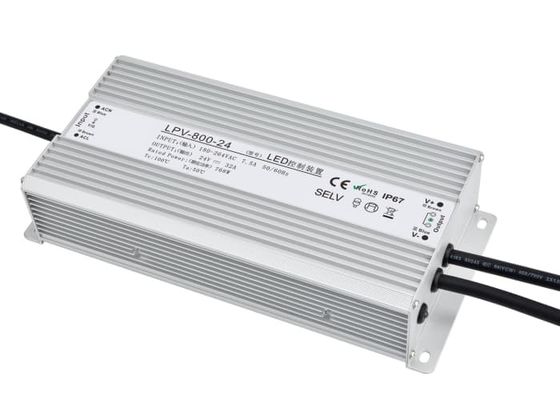

Wide Voltage IP67 Waterproof Switching Power Supply Constant Voltage Compact Size 800W 24V 36V 48V LED Driver
Product Description
| Model |
XH-FY800W-240-1 |
|
| DC output voltage | 24V | |
| Rated output current | 32A | |
| Output current range | 0~32A | |
| Ripple and noise | 180mVp-p | |
| DC output power | 800W | |
| Efficiency | 93.5% | |
| Input voltage |
180-264VAC |
|
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) | |
| Store temperature and humidity | -40~+85centigrades 10-95% RH | |
| Weight | 1.64kg | |
| Input frequency | 50-60Hz | |
Product Advantages of Power Supplies
1. Stable Output: Delivers consistent voltage and current, effectively protecting connected devices from damage caused by power fluctuations.
2. High Efficiency: Boasts high energy conversion rate (often 85%+), reducing energy waste and lowering overall operating costs.
3. Wide Compatibility: Works with various input voltages (e.g., 100-240V AC) and supports multiple device types, meeting diverse usage needs.
4. Reliable Protection: Equipped with over-voltage, over-current, short-circuit, and over-temperature protection, enhancing safety and durability.
5. Compact & Portable: Small in size and light in weight, saving installation space and facilitating easy movement or carrying.
Our Advantages
Our Services
FAQ
2. Q: How long is the warranty period?
A: 2 Years
3. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
Product Show
![]()
![]()
![]()
